ots::OtsUDPFirmwareDataGen Class Reference

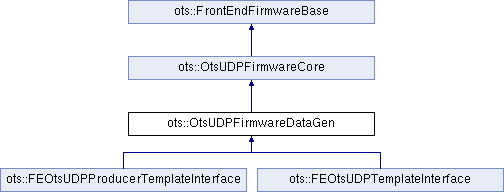

Inheritance diagram for ots::OtsUDPFirmwareDataGen:
ots::OtsUDPFirmwareCore ots::FrontEndFirmwareBase ots::FEOtsUDPProducerTemplateInterface ots::FEOtsUDPTemplateInterface

Public Member Functions

 OtsUDPFirmwareDataGen (unsigned int version)

virtual void init (void)

- Public Member Functions inherited from ots::OtsUDPFirmwareCore
 OtsUDPFirmwareCore (unsigned int version)

virtual std::string write (char *address, char *data)

virtual void write (std::string &buffer, char *address, char *data, bool clearBuffer=true)

virtual void write (std::string &buffer, uint32_t address, uint32_t data, bool clearBuffer=true)

virtual void write (std::string &buffer, uint64_t address, uint64_t data, bool clearBuffer=true)

virtual void waitClear (std::string &, uint32_t, uint32_t, uint32_t=255, bool=true)

virtual std::string read (char *address)

virtual void read (std::string &buffer, char *address, bool clearBuffer=true)

virtual void read (std::string &buffer, uint64_t address, bool clearBuffer=true)

virtual void read (std::string &buffer, uint32_t address, bool clearBuffer=true)

virtual void setDataDestination (std::string &buffer, const std::string &ip, const uint16_t port, bool clearBuffer=true)

virtual uint32_t createRegisterFromValue (std::string &readBuffer, std::string &receivedValue)
 return data lower 32 bits

void writeAdvanced (std::string &buffer, const char *address, const char *data, uint8_t size=1, uint8_t commandTypeOptions=0, bool clearBuffer=true)
 low level functionality

void writeAdvanced (std::string &buffer, const uint64_t &address, const char *data, uint8_t size, uint8_t commandTypeOptions=0, bool clearBuffer=true)

void writeAdvanced (std::string &buffer, const uint64_t &address, const uint64_t &data, uint8_t commandTypeOptions=0, bool clearBuffer=true)

void writeAdvanced (std::string &buffer, const uint64_t &address, const std::vector< uint64_t > &data, uint8_t commandTypeOptions=0, bool clearBuffer=true)

void readAdvanced (std::string &buffer, char *address, uint8_t size=1, uint8_t commandTypeOptions=0, bool clearBuffer=true)

void readAdvanced (std::string &buffer, const uint64_t &address, uint8_t size=1, uint8_t commandTypeOptions=0, bool clearBuffer=true)

void writeDataDestinationIP (std::string &buffer, const uint64_t value, bool clearBuffer=true)

void writeDataDestinationMAC (std::string &buffer, const uint64_t value, bool clearBuffer=true)

void writeDataDestinationPort (std::string &buffer, const uint64_t value, bool clearBuffer=true)

void readDataDestinationIP (std::string &buffer)

void readDataDestinationMAC (std::string &buffer)

void readDataDestinationPort (std::string &buffer)

void setDataDestinationAsSelf (std::string &buffer)

virtual void setControlDestination (std::string &buffer, const std::string &ip, const uint16_t port)
 control destination read/write

void writeControlDestinationIP (std::string &buffer, const uint64_t value)

void writeControlDestinationMAC (std::string &buffer, const uint64_t value)

void writeControlDestinationPort (std::string &buffer, const uint64_t value)

void readControlDestinationIP (std::string &buffer)

void readControlDestinationMAC (std::string &buffer)

void readControlDestinationPort (std::string &buffer)

void setControlDestinationAsSelf (std::string &buffer)

void UDPFirmwareSpecialPing (std::string &buffer)
 other

void UDPFirmwareSpecialNoOp (std::string &buffer)

void readUDPFirmwareVersion (std::string &buffer)

void softEthernetReset (std::string &buffer)

void hardEthernetReset (std::string &buffer)

void clearEthernetReset (std::string &buffer)

void startBurst (std::string &buffer)

void stopBurst (std::string &buffer)

- Public Member Functions inherited from ots::FrontEndFirmwareBase
 FrontEndFirmwareBase (unsigned int version=-1)

unsigned int getVersion ()

virtual void waitSet (std::string &, uint32_t, uint32_t, uint32_t=255, bool=true)

virtual unsigned int getNumberOfBufferedCommands (std::string &)


Protected Member Functions

void setNumberOfBurstWords (std::string &buffer, uint64_t numberOfWords)

void setBurstWordsRate (std::string &buffer, uint64_t interval)


Additional Inherited Members

- Public Attributes inherited from ots::FrontEndFirmwareBase
const unsigned int version_

- Static Public Attributes inherited from ots::OtsUDPFirmwareCore
static const uint8_t FIFO_ADDRESS_CMD_TYPE = (1 << 3)
 command type options that can be OR'd More...


Detailed Description

Definition at line 10 of file OtsUDPFirmwareDataGen.h.

Constructor & Destructor Documentation

◆ OtsUDPFirmwareDataGen()

OtsUDPFirmwareDataGen::OtsUDPFirmwareDataGen ( unsigned int  version)

OtsUDPFirmwareDataGen

The intent of this class is to be the "Data Gen" project firmware user functionality. This should handle everything in the user block 0x0 of the address space.

Definition at line 8 of file OtsUDPFirmwareDataGen.cc.
